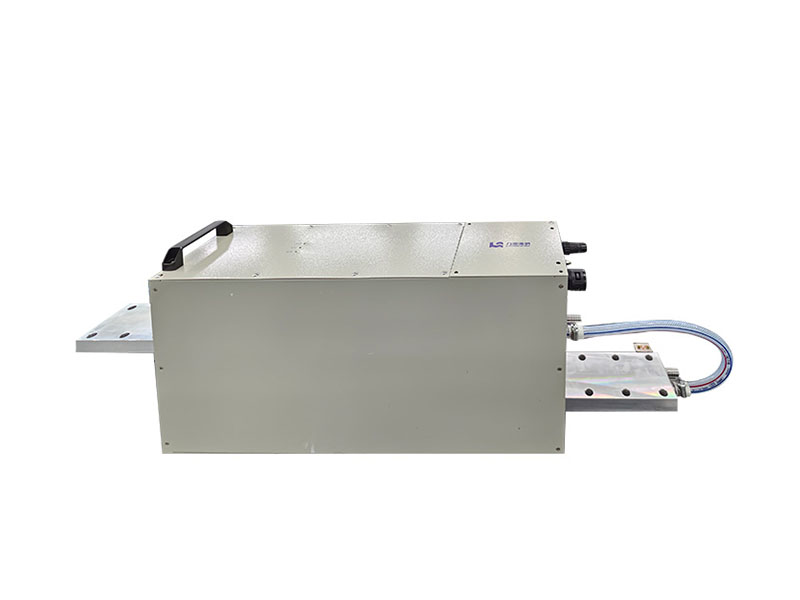

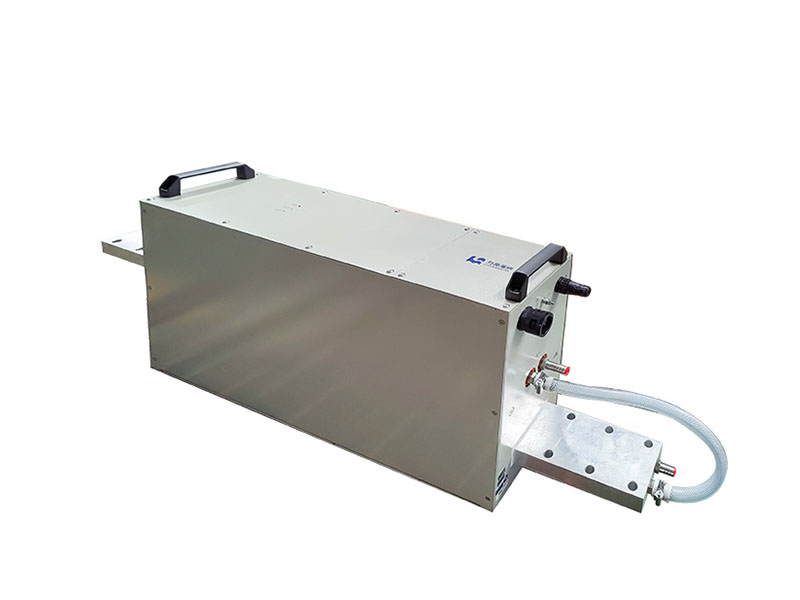

3000A 14V Copper Foil Electrolytic Rectifier Power Supply 3000A 14V Copper Foil Electrolytic Rectifier Power Supply 3000A 14V Copper Foil Electrolytic Rectifier Power Supply
3000A 14V Copper Foil Electrolytic Rectifier Power Supply
3000A 14V Copper Foil Electrolytic Rectifier Power Supply
3000A 14V Copper Foil Electrolytic Rectifier Power Supply

3000A 14V Copper Foil Electrolytic Rectifier Power Supply

  • Input parameters: Three phase, AC480V±10% ,60HZ
  • Output parameters: DC 0~8V 0~5000A
  • Cooling method: Water cooling
  • Power supply type: IGBT-based power supply
  • Application Industry: Non-ferrous metal electrolysis, such as electrolytic Copper
Free Quote Send Email

Products

  • Electroplating Rectifier

    • Chrome Plating Rectifier

      • Anodizing Rectifier

        • Pulse Power Supply

          • Plasma Coating Rectifier

            • Water Treatment Rectifier

              • Electrolytic Gas Rectifier

                • Hydrogen Electrolysis Rectifier

                  • Metal Electrolysis SCR Rectifier

                    • Electrolytic Copper Foil Rectifier

                      • Rare Earth Smelting Rectifier

                          • We will contact you within 24 hours
                          Tel: +86-371-66859535
                          Email: [email protected]
                          Whatsapp: 16638166871
                          Get A Free Quote
                          *

                            Features

                            • Material saving, saving busbar materials and saving the main busbar inside the switch power supply and cabinet.
                            • Time saving, the busbar can be designed and manufactured in a standardized manner at the manufacturer, saving the time for surveying, processing and installing the busbar at the user's site.
                            • Energy saving, because the busbar is saved, the number of joints is also reduced, so the loss is reduced
                            • The installation process becomes significantly simplified and space-efficient through the elimination of busbars. Moreover, the shortened busbar loop length not only minimizes spatial requirements but also reduces the number of support points. Additionally, the reduced number of connection joints further enhances installation convenience, making the overall process even more efficient. As a result, these improvements contribute to a streamlined and cost-effective setup. Therefore, the system becomes both easier to install and more practical for various applications.This results in a more compact and maintenance-friendly infrastructure.
                            • The construction safety risk is small. The installation construction personnel only need to stand on the concrete foundation platform to complete the power supply and busbar installation, without the need to set up scaffolding, and the construction personnel have no risk of working at heights.

                            Description

                            The 3000A 14V Copper Foil Electrolytic Rectifier Power Supply is widely used in metallurgical industries. It supports metal extraction, purification, and electroplating processes.

                            Electrolysis plays a crucial role in facilitating redox reactions, many of which are difficult to achieve through other means. For example, molten fluoride can oxidize to monomeric fluorine at the anode. Meanwhile, molten lithium salt can reduce to lithium metal at the cathode. Moreover, the electrolysis industry significantly contributes to the national economy by supporting various industrial applications.

                            Electrolysis is crucial for smelting non-ferrous metals, such as sodium, potassium, magnesium, and aluminum. It is also vital for processing rare metals like zirconium and hafnium, as well as refining metals such as copper, zinc, and lead. Furthermore, it enables the production of basic chemical products, including hydrogen, oxygen, caustic soda, potassium chlorate, hydrogen peroxide, and ethylenedicarbonitrile. Lastly, processes such as electroplating, electropolishing, and anodic oxidation are also achieved through electrolysis, highlighting its versatility and importance.

                            By incorporating transition words and shortening paragraphs, the text now meets the recommended guidelines for structure and readability.

                            Parameters

                            Characteristic TypesParameter ItemsTechnical Requirements

                            Power Types                            		Power typesHigh-frequency Power Supply
                            Model and specificationsTBSB-5000A-8V
                            Cooling modeWater-cooled
                            Switch tube typeIGBT

                            Input Characteristics                            		Rated Input VoltageThree-phase, AC480V±10% ,50~60HZ
                            Rated Input Power39.2KVA
                            Rated Input CurrentAC 47.1A
                            Input Power FactorCOSΦ≥0.95

                            Output Characteristics                            		Output VoltageDC  0～8V
                            Output CurrentDC  0～5000A
                            Stabilized Current Precision≤1%（Rated Current)
                            According to accuracy10A，0.01V
                            Rated output efficiency≥94%

                            Environmental Conditions                            		Installation siteIndoor installations
                            Altitude≤1500 meters
                            Ambient temperature-20℃～40℃
                            Relative humidity≤90％

                            Control Mode                            		Operating ModePLC, ADDA, Ethernet, RS485 and RS232

                            Protection Characteristics                            		With over voltage, over current, overload, short circuit, overheating and other abnormal self-protection function
                            ModelInputOutputDimension (mm)/L*W*H
                            TBSB-400A/12VThree Phase AC380V±10% 50HZ  12V/400A500*343*183
                            TBSB-500A/12VThree Phase AC380V±10% 50HZ12V/500A460*310*185
                            TBSB-600A/12VThree Phase AC380V±10% 50HZ  12V/600A500*343*183
                            TBSB-800A/5VThree Phase AC380V±10% 50HZ  5V/800A460*310*185
                            TBSB-800A/6VThree Phase AC380V±10% 50HZ  6V/800A460*310*185
                            TBSB-800A/12VThree Phase AC380V±10% 50HZ  12V/800A780*350*180
                            TBSB-1000A/12VThree Phase AC380V±10% 50HZ  12V/1000A644*330*192
                            TBSB-1000A/16VThree Phase AC380V±10% 50HZ  16V/1000A620*310*180
                            TBSB-1000A/25VThree Phase AC380V±10% 50HZ  25V/1000A700*352*185
                            TBSB-1000A/36VThree Phase AC380V±10% 50HZ  36V/1000A700*352*185
                            TBSB-1000A/38VThree Phase AC380V±10% 50HZ  38V/1000A780*365*187
                            TBSB-1200A/5VThree Phase AC380V±10% 50HZ  5V/1200A580*342*185
                            TBSB-2000A/5VThree Phase AC380V±10% 50HZ  5V/2000A780*310*180
                            TBSB-1800A/12VThree Phase AC380V±10% 50HZ  12V/1800A780*310*180
                            TBSB-2500A/12VThree Phase AC380V±10% 50HZ  12V/2500A1024*340*180
                            TBSB-3000A/12VThree Phase AC380V±10% 50HZ  12V/3000A700*352*185
                            TBSB-3000A/15VThree Phase AC380V±10% 50HZ  15V/3000A824*340*180
                            TBSB-4000A/10VThree Phase AC380V±10% 60HZ  10V/4000A700*362*185
                            TBSB-4000A/15VThree Phase AC380V±10% 50HZ  15V/4000A824*340*180
                            TBSB-5000A/7VThree Phase AC380V±10% 50HZ  7V/5000A700*362*185
                            TBSB-5000A/15VThree Phase AC380V±10% 50HZ  15V/5000A824*340*180

                            If you need other power plating rectifiers, we can custom design them according to customer requirements. Please contact us.

                            Are you looking for 3000A 14V copper foil electrolytic rectifier power supply? Liyuan Haina Group is one of the professional manufacturers and suppliers in this field. With over 27 years of focus on R&D, design, production, sales, and technical services for industrial rectifiers, we have already exported our products to the United States, Canada, Britain, Italy, Spain, South Africa, Russia, the UAE, Japan, South Korea, Malaysia, and other parts of the world. Equipped with a productive factory, we warmly welcome you to purchase our high-quality, Made-in-China products at competitive prices. Additionally, we offer customized services to meet your needs.
